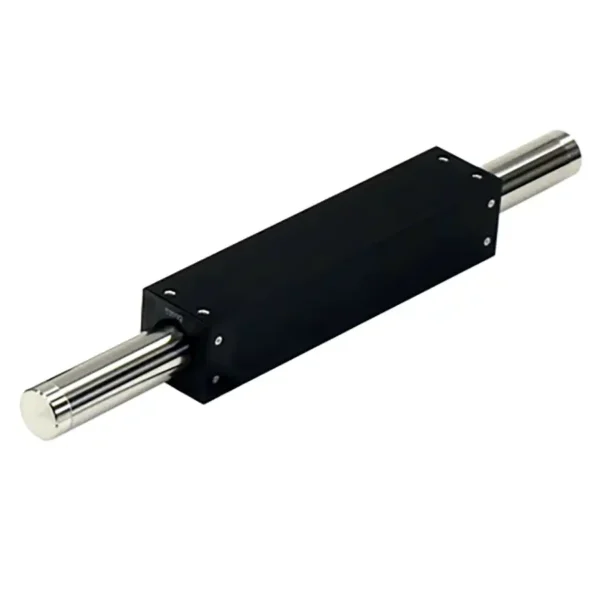

S350Q Linear Servo Motor

Linear Servo Motor Technology

Linear servo motor design advantages:

  • Power dense, compact, and efficient design easily integrates into machine structures.
  • Zero cogging for ultrasmooth motion required for high precision applications.
  • Contactless motion for maintenance free operations, minimizing downtime.
  • Non-critical air gap with no variation in force along the length of the shaft delivers smooth and quiet operation.
  • Ideal for replacing ball screw actuators, flat or u-channel linear Motor, or pneumatic/hydraulic systems.

High Speed, High Acceleration Linear Motor

Linear servo motor with 35mm diameter shaft, quadruple-winding forcer.
Available with stroke lengths from 100-2000mm.

“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer

Specification Overview

  • Continuous Force (N)
    190
  • Continuous Current (Amps)
    2.7
  • Peak Force (N)
    760
  • Peak Current (Amps RMS)
    11
  • Force Constant (N/Amps RMS)
    70
  • Force Constant (lbs/Amps RMS)
    15.8
  • Back EMF (V/m/s)
    23
  • Max Voltage (AC)
    240
  • Resistance (Ohms)
    6.9
  • Inductance (mH)
    11
  • Electrical Time Constant (ms)
    1.58
  • Motor Constant (N/W-2)
    26.79
  • Thermal Resistance (°C/W)
    2.2
  • Max Phase Temperature (°C)
    135
  • Magnetic Pitch (N-N mm)
    120
  • Air Gap (mm)
    1
  • Forcer Length (mm)
    280
  • Forcer Width/Depth (mm)
    60
  • Forcer Weight (kg)
    2.4
  • Shaft Diameter (mm)
    35
  • Stroke Min (mm)
    150
  • Stroke Max (mm)
    2000
  • Shaft Length Min (mm)
    530
  • Shaft Length Max (mm)
    2480

3D CAD Drawing Download
