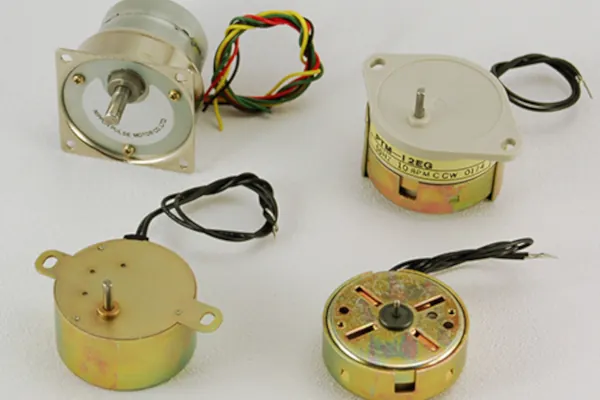

Synchronous Motors

Constant speed, permanent magnet motors

Nippon Pulse's synchronous motors are constant speed, permanent magnet motors that are well-suited for timing applications.

Synchronous Motors

Specification Overview

  • Torque at sixty hertz: 0.5 mN•m to 1000 mN•m
  • Rotating direction: Single direction (CW or CCW) and Dual direction (CW/CCW reversible)
  • Rotations at sixty hertz: 1 rpm to 600 rpm

Synchronous Motor Advantages

  • Available in both single direction (shaded pole design) and reverse direction (phase-shift by capacitor)
  • Built with internal impedance protection, so the shaft can be continuously stalled without danger of burning the coils
  • A wide variety of plastic and metal gear heads are available on all models

Precision Solutions for Industries

  • Packaging
  • Life Sciences
  • Semiconductor
  • Optics & Photonics
  • Robotics
  • Toolless Cutting
  • Lab Automation
  • Pharmaceuticals
Packaging
Life Sciences
Semiconductor
Optics & Photonics
Robotics
Toolless Cutting
Lab Automation
Pharmaceuticals

Select the Best Synchronous Motor for your Application

1. Determine desired output rotational speed
2. Indicate operating frequency (50Hz or 60 Hz)
3. Indicate operating voltage (AC)
4. Indicate rotation direction (CW, CCW, both)
5. Determine required torque at operating speed
6. Nippon Pulse will identify the appropriate model and gearhead required to match speed.
