Nanopositioning Linear Stages
Nanopositioning, Single or Multi-Axis
The Nippon Pulse linear servo motor nanopositioning linear stages offer the accuracy of piezo driven stages and the speed and performance of servo stages. SCR series stages produce extremely accurate results with no loss in stability, regardless of the complexity of the motion profile.
With a simple, lightweight, compact shaft-type linear motor comprising only a magnet and a coil, these stages attain large drive force with an efficient and short coil length, allowing for high speed and high precision applications. Because there is no friction, there is no sound or dust, making the motor maintenance-free.
Specification Overview
- Maximum Acceleration: 6 G to 28 G
- Stroke Length: 20 mm to 300 mm
- Accuracy: 2 µm to 12 µm
- Moving Mass: .229 kg to 4.7 kg
Linear Stage SCR Advantages
- Lightweight, compact shaft-type linear motor comprising only a magnet and a coil
- Nanopositioning delivers the accuracy of piezo driven stages
- Extremely accurate results with no loss in stability, regardless of the complexity of the motion profile
- Large drive force with an efficient and short coil length delivers high speed and precision
Precision Solutions for Industries
- Packaging
- Life Sciences
- Semiconductor
- Optics & Photonics
- Robotics
- Toolless Cutting
- Lab Automation
- Pharmaceuticals
Select the Best Linear Stage SCR for your Application
Linear Stage SCR Videos

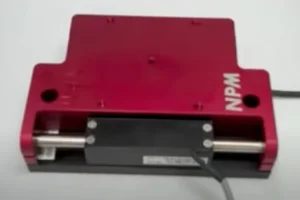

SCR075 Nanopositioning Series Linear Stage
The SCR stage includes Nippon Pulse’s Linear Servo Motor and contains all encoder and motor cables within the stationary base. The stage is designed so there is no need for the cables to bend or flex.
Watch Now

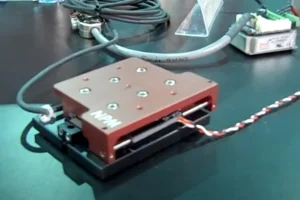

SCR Nanopositioning Stage Series
The Nippon Pulse SCR Nanopositioning stage series offers the accuracy of piezo driven stages with the speed and performance of servo stages. Integrated with a cross-roller guide, the SCR stage produces extremely accurate results with no loss of stability. View all of our SCR Nanopositioning stage products under the Products tab.
Watch Now
