Magnetic Counterbalances
Protection for Vertical Applications

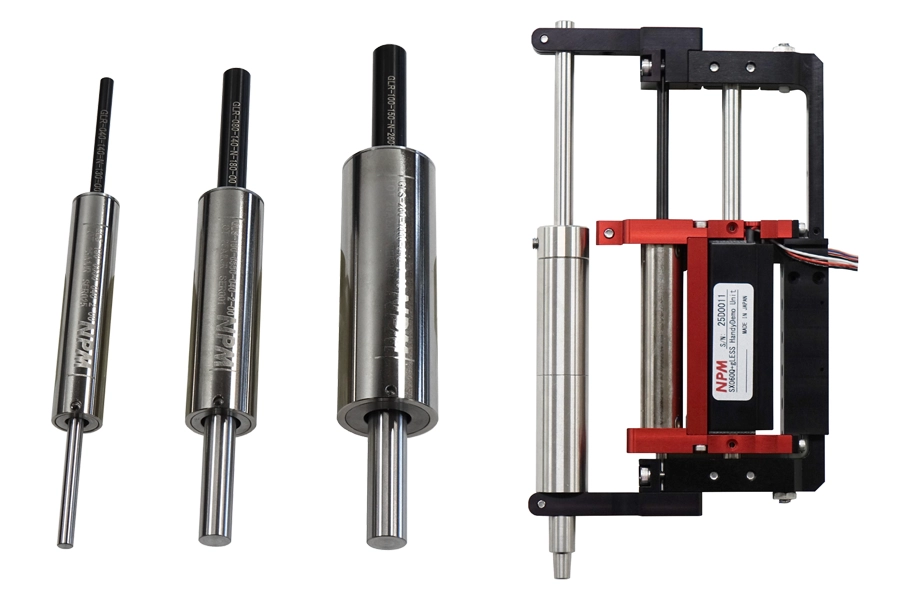

In many vertical applications, it may be necessary to provide a means to prevent the load from suddenly dropping if power is lost. Counterbalance technologies provide a solution to this challenge by adding a counter mass or force that balances the vertical load. Nippon Pulse’s gLess magnetic counterbalance is a unique, passive solution that provides a specific force to prevent falls when power is lost.
Specification Overview
- Three counterbalance stator diameters for 13mm to 26mm
- Multiple rod diameters for up to 13 counterforces - 2N to 26N
- Standard 40mm stroke with longer strokes available on request
gLess Magnetic Counterbalance Advantages
- Simplicity - Passive 2-part device includes a stator housing a unique magnet arrangement and a hybrid ferrous/non-ferrous shaft creating a linear counterforce over the entire stroke.
- Non-Contact - Zero wear, zero maintenance, reliable.
- Compact Package - Minimal stray magnetic field allows minimal space for installation.
- Linear Counterforce - Constant counterforce the entire stroke length simplifies servo tuning, allows optimized tuning for best system bandwidth and quick move and settle.
Precision Solutions for Industries
- Life Sciences
- Semiconductor
- Optics & Photonics
- Lab Automation
How to Select the Right gLess Counterbalance for your Application
- Identify the moving mass (in Kg) associated with the vertical axis, including the load attachment.
- Calculate the force (in Newtons) related to the moving mass.
- Select a stator/rod combination that will provide a counterforce greater than or equal to the required force to hold the vertical mass.
- Add weight if needed to balance the upward force. Add or subtract weight to provide an upward or downward bias.
