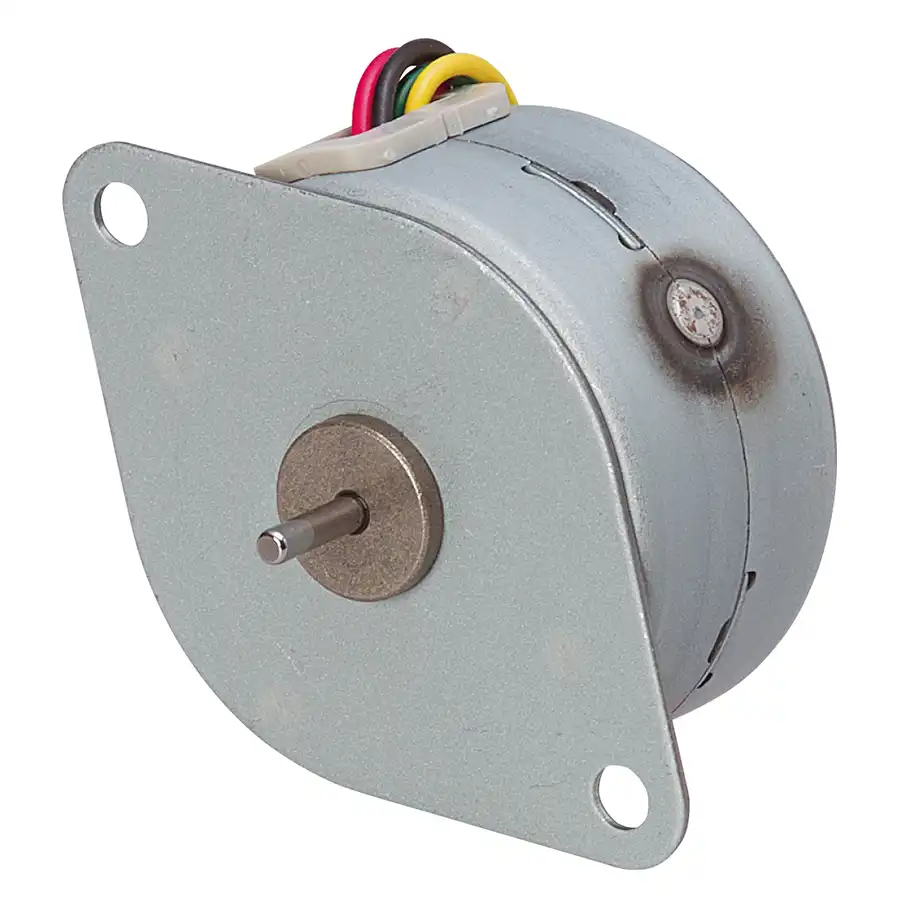

PTM-24M Synchronous Motors

Timing Motor Technology

The PTM/PTMC synchronous motors from Nippon Pulse are ideal solutions for timing applications. The synchronous motors operate at a set speed based on input frequency and gear ratio of the integral gear package. Units are available for single or dual direction operation (CW/CCW). Options exist for flying leads or on-board connectors, alternate voltage ratings, and various gear ratios. The PTM-24M(G) series is a 24-pole synchronous motor, 35mm housing.

“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer

Specification Overview

  • Weight (g)
    80
  • RoHS
    Y
  • Rated Voltage (VAC)
    24, 100
  • Torque @ 60Hz (mNm)
    12.5
  • Rotating Direction
    Dual CW/CCW
  • Revolutions @ 60Hz (rpm)
    300
  • Frequency (Hz)
    50, 60
  • Operating Temperature (C)
    -10 to +50
  • Diameter (mm)
    80
