PPCle8443 Board Level Controller

High Performance Motion Controller Technology

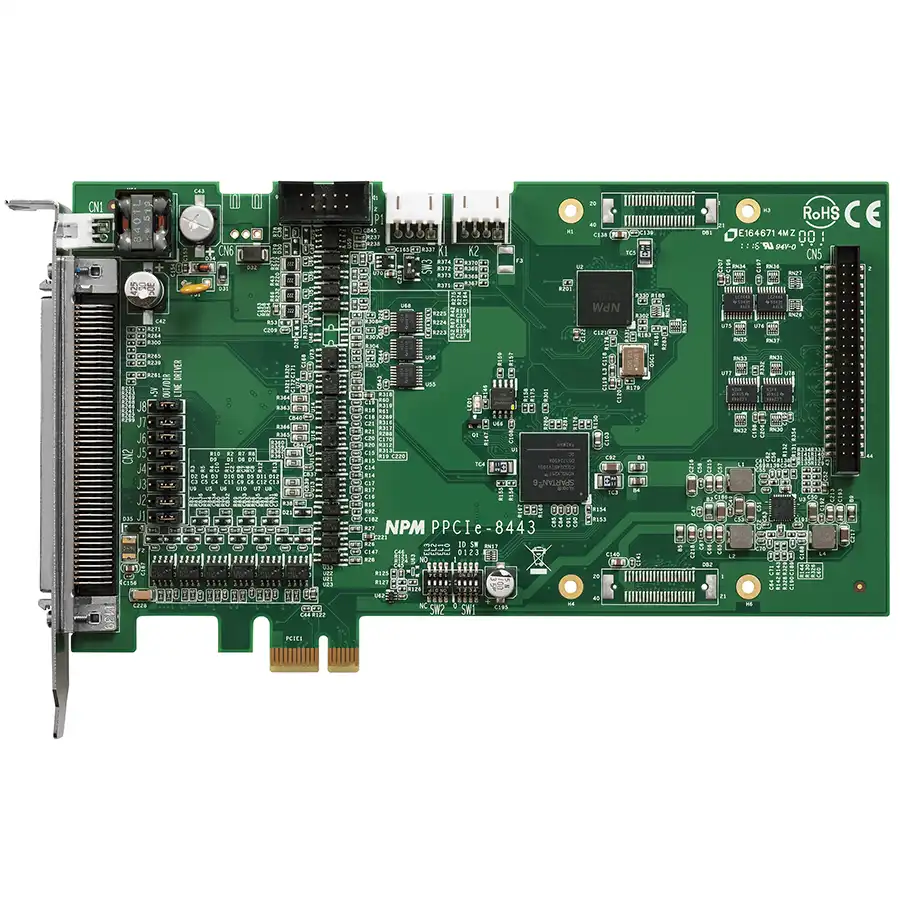

Nippon Pulse’s PPCIe8443 is a PCI-Express interface 4-axis control board for stepper and servo motor control. The controller is equipped with a PCL6046 pulse control LSI for linear, circular and continuous interpolation, linear/S-curve acceleration, and velocity/position override. The controller includes utility software for application development and ease of system debugging, as well as function libraries, definition files, and sample programs.

“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer

Specification Overview

  • RoHS
    Yes
  • Axis Count
    4
  • Maximum Output Frequency (pps)
    6.5M
  • Package Type
    Board Level
  • Interpolation Option
    Linear, Cicular, Continuous
  • Power Supply Voltage
    3.3, 5, 12, 24 Vdc +/-5%
  • Encoder Input
    A, B, and Index per axis
  • CPU Interface
    PCI-Express
  • Speed Multiplicaion Rate
    0.1x to 100x
  • Acceleration Rate
    1 to 65535 (16 bit)
  • Deceleration Rate
    1 to 65535 (16 bit)
  • Position Pulse Range
    -2,147,483,648 to +2,147,483,647 (32 bit)
  • Serial Bus Pulse Control
    PCL6046
