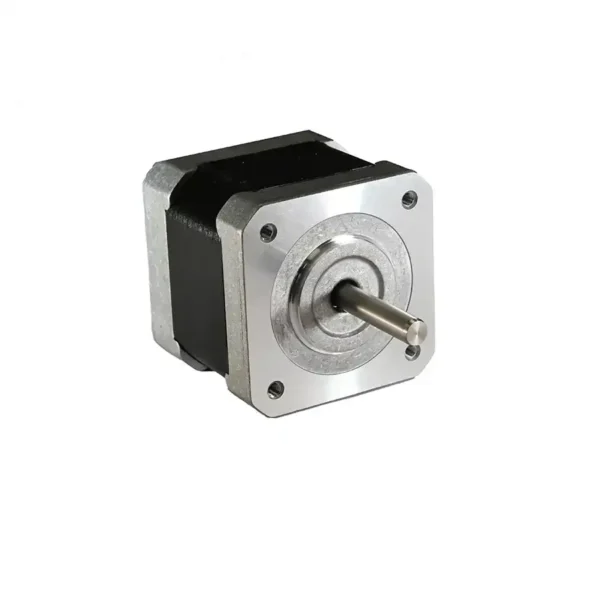

PJE42T-48A14 Rotary Hybrid Stepper Motor

Hybrid Stepper Motor Technology

The PJE series of hybrid stepper motors from Nippon Pulse are available in sizes from NEMA 8 through NEMA 34. Each frame size is offered in multiple stack lengths and can be fitted with optical encoders. These hybrid stepper motors are ideal for motion control application requiring high torque in a compact package. Nippon Pulse can also provide a variety of customizations including special shaft accommodations, custom mountings, special environmental treatment, or integration of lead or ball screws to convert rotary to linear motion. The PJE42T series is a NEMA 17 hybrid stepper motor (42.2mm x 42.2mm frame) with bipolar windings and is available in 3 stack lengths.

“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer

Specification Overview

  • Rotor Inertia (g-cm2)
    77
  • Weight (g)
    360
  • NEMA Size
    17
  • Phases
    2
  • Full Steps
    200
  • Step Angle
    1.8
  • Step Accuracy
    +/-5%
  • Insulation Class
    B
  • Insulation Resistance
    100 MΩ
  • Operating Ambient Temp
    0°C to +50°C
  • Operating Rel Humidity
    20% - 90%
  • Storage Ambient Temp
    -20°C to +70°C
  • Storage Rel Humidity
    15% - 95%
  • Dialectric Strength
    500 Vac
  • Duty
    Continuous
  • RoHS
    Yes
  • Rated Voltage (VAC)
    3.72
  • Rated Current (Amps DC/Phase)
    2
  • Phase Resistance (Ω +/-10% @20°C)
    1.35
  • Phase Inductance (mH +/-20%)
    3.2
  • Holding Torque (Nm)
    0.48
