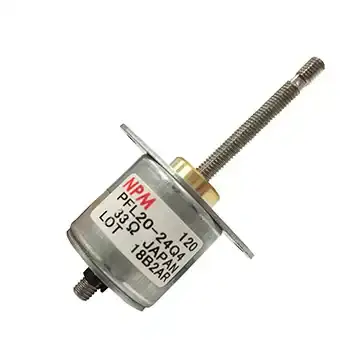

PFL20-24Q4-120-30 Linear Stepper Motor

Linear Stepper Motor Technology

The Nippon Pulse PFL20 series linear stepper motors converts rotary motion into linear motion with an integral lead screw which passes through the core of the stepper motor rotor. By using rolled screw technology, the linear stepper motors operate smoothly with higher efficiencies and longer lifespan. Linear stepper motors are a cost-effective method to create linear motion in various lab automation applications, medical diagnostic equipment, pumps and valves, printers, copiers, and packaging machinery. The PFL20-24 series is available with 24 steps per revolution with screw thread pitch of 1.20mm, with stroke lengths of 30mm with a motor diameter of 20mm.

“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer

Specification Overview

  • Stroke (mm)
    30
  • Weight (g)
    31
  • Phases
    2
  • Step Angle
    15
  • Step Accuracy
    +/-5%
  • Insulation Class
    B
  • Insulation Resistance
    100 MΩ
  • Operating Ambient Temp
    -10°C to +50°C
  • Operating Rel Humidity
    20% - 85% (non-condensing)
  • Storage Ambient Temp
    -20°C to +70°C
  • Storage Rel Humidity
    15% - 95%
  • Dialectric Strength
    500 Vac
  • Duty
    Continuous
  • RoHS
    Yes
  • Rated Voltage (VDC)
    5
  • Rated Current (mAmps/Phase)
    151
  • Phase Inductance (mH +/-20%)
    12
  • Stack
    Standard
  • Bipolar
    Yes
  • Coil Winding
    Bipolar
  • Steps/Rev
    24
  • Force at 200 pps (N +/-12%)
    6
  • Resolution (mm/step)
    0.05
  • Thread Pitch (mm)
    1.2
