GLS-130/GLR-035 Magnetic Counterbalance
Linear Servo Motor Technology
gLess Magnetic Counterbalance Advantages:
- Passive 2-part device includes a stator housing a unique magnet arrangement and a hybrid ferrous/non-ferrous shaft creating a linear counterforce over the entire stroke
- Zero wear, zero maintenance, reliable
- Minimal stray magnetic field allows minimal space for installation
- Constant counterforce the entire stroke length simplifies servo tuning, allows optimized tuning for best system bandwidth and quick move and settle.

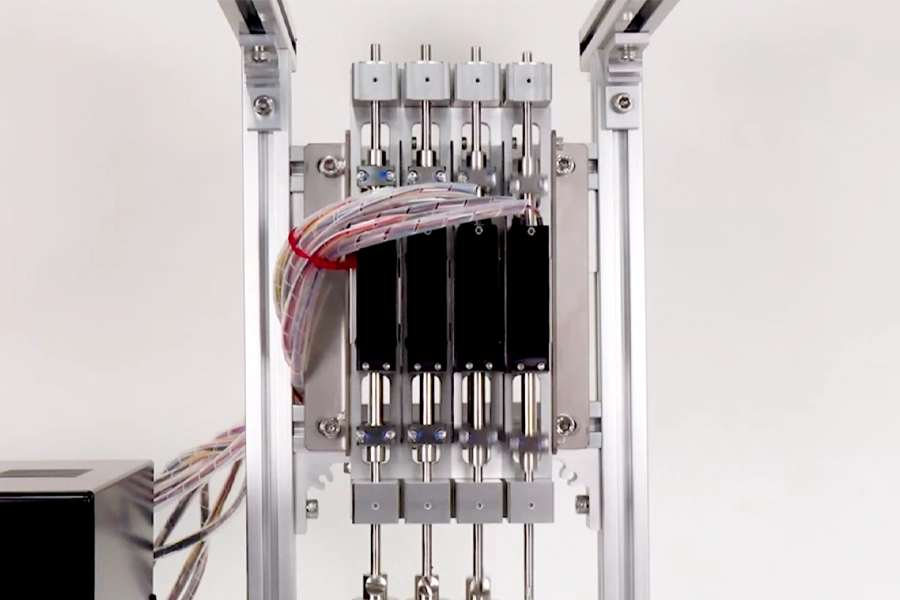

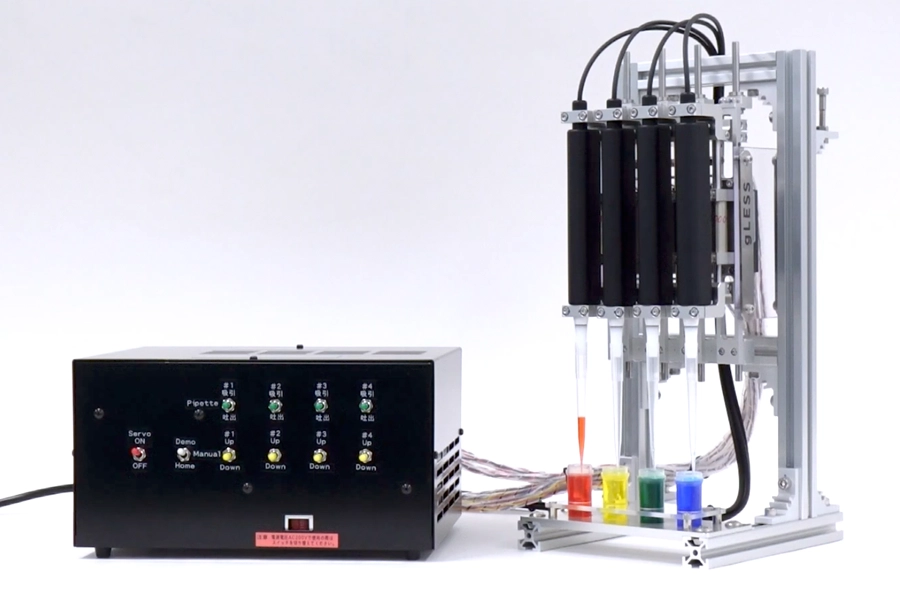

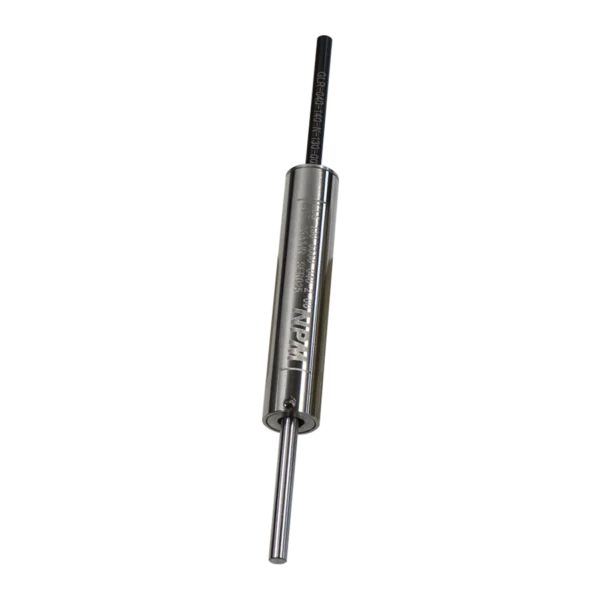

Compact Linear Gravity Compensator
Magnetic counterbalance with 13 mm diameter stator 3.5 mm diameter rod, counterforce of 2.0 N, available 40mm stroke.
“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer
Specification Overview
-
Counter Force (N)2
-
Stator Diameter (mm)13
-
Rod Diameter (mm)3.5
-
Stroke (mm)40
-
Rod Total Length (mm)140
-
Stator Length (mm)65.5
-
Radial Load (N)< 60
-
Stator Mass (g)65
-
Rod Mass (g)13
-
Operating Temperature (C)0 - 40
-
Operating Rel Humidityup to 85 (noncondensing)
-
Storage Ambient Temp-80
-
Storage Rel Humidityup to 85 (noncondensing)
-
Magnetic Flux Leakage (mT)up to 30
-
Linear Servo ModelsS060, S080, SX060, SX080
CAD Model coming soon.
