FMC32 Board Level Controller
High Performance Motion Controller Technology

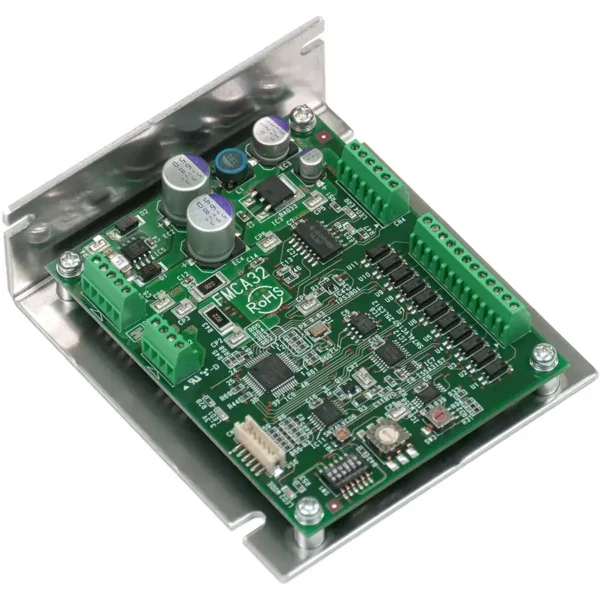

The FMC32 is a compact controller with integrated driver equipped with a pulse control LSI, PCD2112, for controlling a serial bus. The FMC32 board, with a USB to 4-wire serial conversion unit allows creation and dowload of a series of execution sequence programs to the board. Users can program up to 32 motion profiles with both linear and S-curve patterns.
“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer
Specification Overview
-
Weight (g)22
-
RoHSYes
-
Axis Count1
-
Maximum Output Frequency (pps)2.4M
-
Package TypeBoard Level
-
Integrated DriverBipolar, Constant Current
-
Interpolation OptionNone
-
Power Supply Voltage11Vdc to 26 Vdc
-
Rated Current (A/phase)0.5 (Maximum)
-
CPU InterfaceSPI
-
Programing Lines246
-
Motion profiles32
-
Set Speed Range32
-
Acceleration Rate1 to 65535 (16 bit)
-
Deceleration Rate1 to 65535 (16 bit)
-
Position Pulse Range0 - 268,435,455 (28 bit)
-
Serial Bus Pulse ControlPCD2112
-
Depth (mm)45
-
Height (mm)17.6
