CMD-4CR-EV-Advanced
The Commander evaluation board allows for faster prototyping and evaluation, so OEMs can ramp up production. The Commander Advanced Kit contains the Commander core module, evaluation board, development kit with reference designs, and a complete cable set.
Availability and Pricing
Contact our applications engineers for availability, lead time and pricing information for this product.
Technical specifications
| Core chips | PCL6045BL |
| Ambient temperature operating | -20 to +80 deg. C |
| Ambient temperature storage | -55 to +155 deg. C |
| Power supply including ac adaptor | +12 to +48 Vac |
| No of axes | 4 |
| Max output frequency | 3M pps |
| Encoder input | Yes |
| Cpu interface | Stepper / Servo |
| Package type | Commander core, board, development kit, cable kit |
| Bus type | USB, I2C bus, SPI bus |

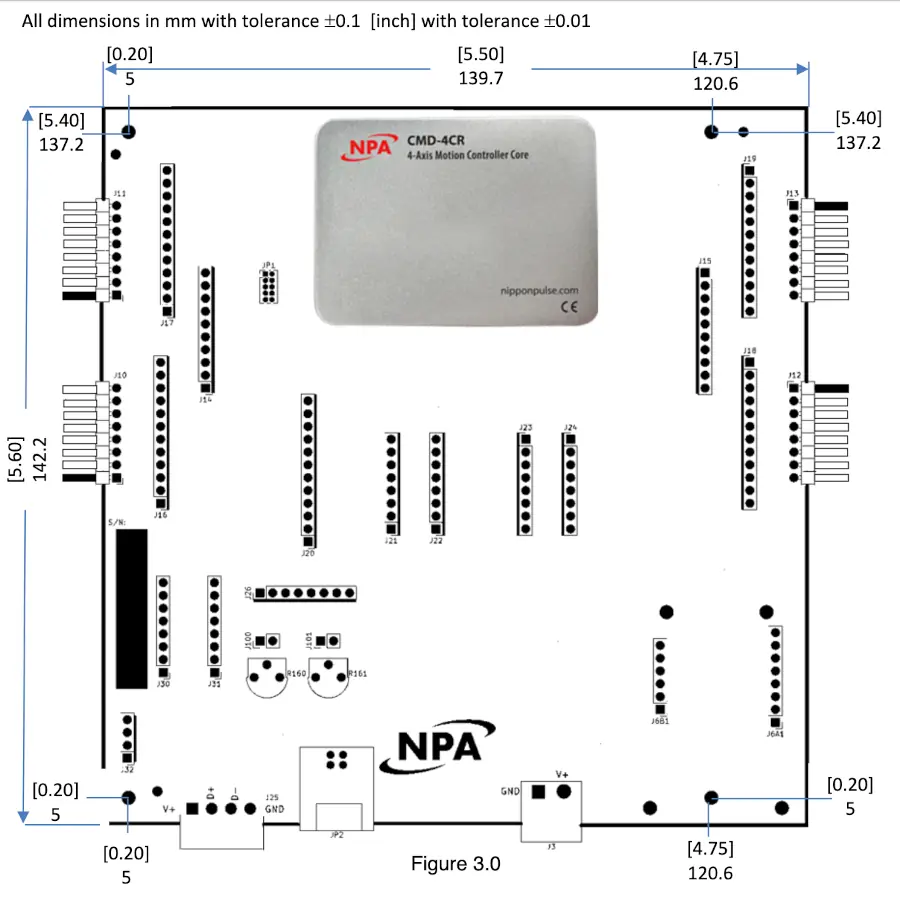

System drawing
