CMD-4CR-EV Command Controller
High Performance Hybrid Motion Controller Core

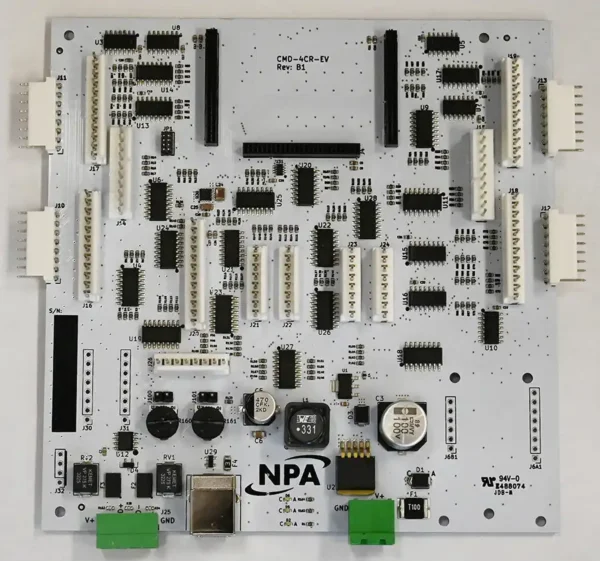

The Commander evaluation board allows for faster prototyping and evaluation, so OEMs can ramp up production. This part number only includes the evaluation board, and not the core module.
“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer
Specification Overview
-
RoHSYes
-
Axis Count4
-
Maximum Output Frequency (pps)6.55M
-
Package TypeEvaluation Board
-
Interpolation OptionLinear, Cicular, Spiral/Helical,Continuous
-
Power Supply Voltage3.3 Vdc +/-10%
-
Encoder InputA, B, and Index per axis
-
CPU InterfaceUSB, I2C Bus, SPI
-
Speed Multiplicaion Rate0.1x to 100x
-
Acceleration Rate1 to 65535 (16 bit)
-
Deceleration Rate1 to 65535 (16 bit)
-
Position Pulse Range-134,217,728 to +134,217,727 (28 bit)
-
Ramp Down Range0 - 16,777,215 pulses
-
Serial Bus Pulse ControlPCL6054BL
