Micro Motors

Small, Miniature and Micro Motors for Big Applications

In applications where limited space is available, you need to find a product that will fit, but also one that delivers the power needed to make the application successful. There are many small, miniature, and micro motors in the world, but only a few offer the kind of power density that make them useful in applications that need that bit of extra torque or force to get moving.

High Power Density Micro Motors for Small Spaces

Whether you require rotational or linear motion, there are variations of tiny motors that offer high power density to pack a powerful punch in a small space. The methods to improve power density are varied depending on motor type, but typically involve use of higher energy magnetics, tighter precision to reduce magnetic air gaps, improved slot fill, and unique electromagnetic configurations.

Your partner in motion control, Nippon offers a variety of Small, Miniature, and Micro Motor motor solutions based on several motor technologies, from small tin can steppers (10mm), to micro direct drive servo motors (13mm) to small linear servo motors (10mm forcer with 4mm shaft).

Space Matters – Nippon Pulse Small, Miniature & Micro Motors for compact medical, automation, and precision motion applications.

Have questions or an application you'd like to discuss?
We can help.

Schedule a Consultation with our Engineers

Nippon Small, Miniature & Micro Motors can be incorporated into numerous applications such as Small Pumping Systems, Miniature Vision Systems, and Life Science & Medical Applications, and more:

  • Infusion Therapy pumps
  • Microplate Handlers
  • Pipetting / Pick & Place
  • Microfluidic Dispensing
  • Medical Device Assembly Cardiology/Neurology/
    Interventional medicine
  • Diagnostics Flow Cytometry /HPLC
  • IVD Sensor Manufacturing
  • Medical Device Manufacturing
    Inspection Systems
  • Custom Medical Devices Biopsy
  • In Vivo interventional Medicine
    Urology/Cancer
  • Microscope/Digital pathology
  • Drug Discovery/ Compound
    Management
  • Adhesive Dispensing for Med
    Device Mfg.
  • Microscope Focusing Systems
  • Surgical Hand Tools
Space Matters - Life Science & Medical Applications.

Small, Miniature and Micro Motor Solutions - for Rotational and Linear Motion

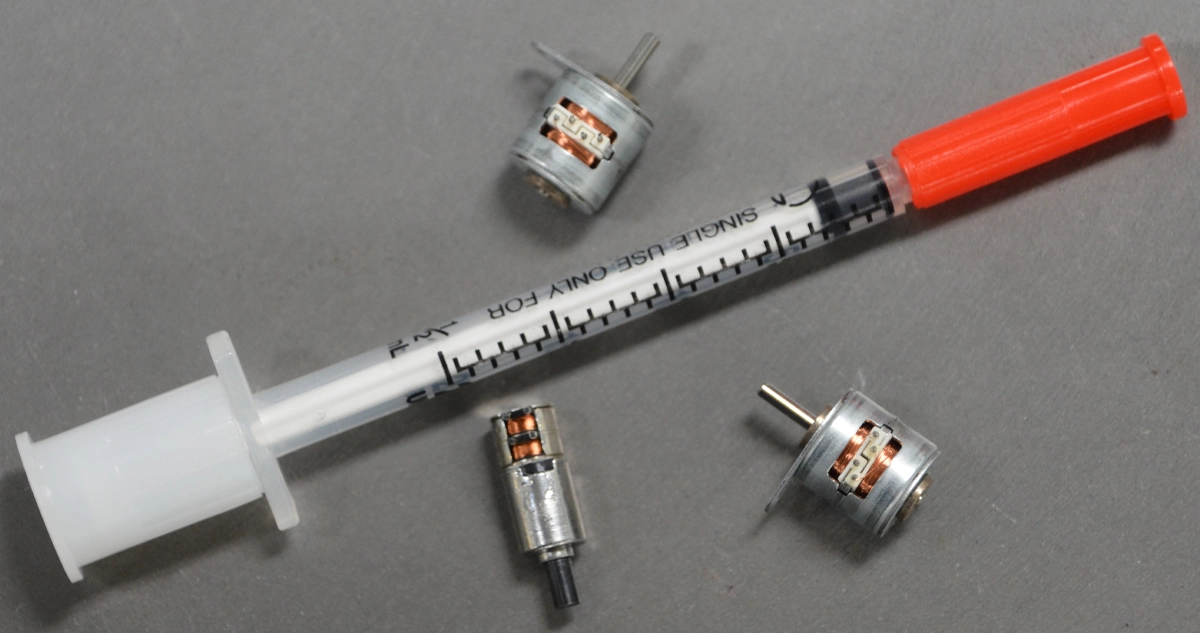

Space Matters - Tin Can Steppers As small as 10mm diameter, 1Nm of holding torque, 20 steps per/rev

Rotary Tin Can Steppers – As small as 10mm diameter, 1Nm of holding torque, 20 steps per/rev.

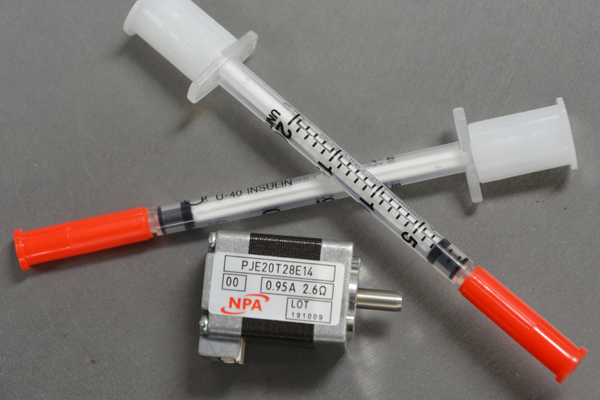

Space Matters - Hybrid Steppers As small as NEMA 8 size (20mm), 0.022Nm of holding torque, 200 steps per/rev

Rotary Hybrid Steppers – As small as NEMA 8 size (20mm), 0.022Nm of holding torque, 200 steps per/rev.

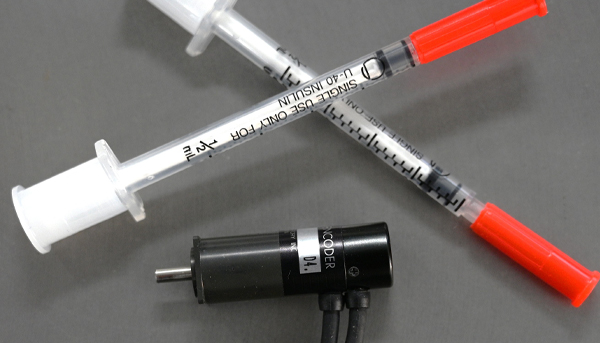

Space Matters - Micro Direct Drive Servos As small as 13mm diameter, 3Nm of continuous torque, 3000 rpm max speed.

Micro Direct Drive Servos – As small as 13mm diameter, 3Nm of continuous torque, 3000 rpm max speed.

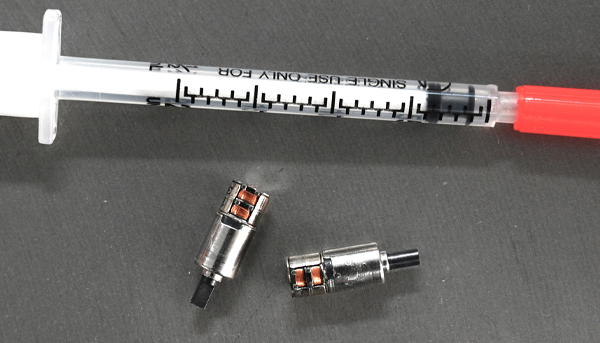

Space Matters - Micro DC Actuators down to 6mm diameter with integral lead screw, 4mm stroke, with output force of 4N at 0.4mm/s & resolution of 0.24 microns

Micro Actuators - Down to 6mm diameter with integral lead screw, 4mm stroke, with output force of 4N at 0.4mm/s & resolution of 0.24 microns.

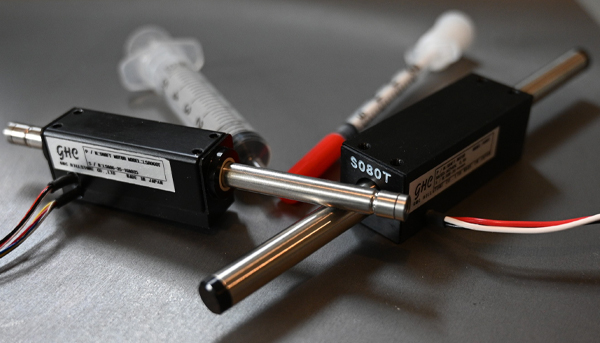

Space Matters - Linear Shaft Motors As small as 4mm dia. shaft & 10mm square forcer delivering a peak force of 4.8N.

Linear Servo Motors – As small as 4mm dia. shaft & 10mm square forcer delivering a peak force of 4.8N.

See Space Limited Applications in Action

Introducing Nippon Pulse COMMANDER core controller!

Nippon Pulse 4-axis COMMANDER controller is a hybrid IC that bridges the gap between design-from-scratch and off-the-shelf motion controllers. COMMANDER is secure, flexible and easy to use.
Watch Now →

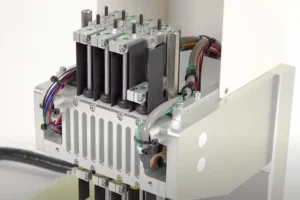

Linear Servo Motor in an 8-pipette dispensing unit

Nippon Pulse Linear Servo Motor servos used in an 8-head dispensing demo. Demonstrates both quick motion and multi-axis movement in a tight configuration. This demo utilizes our FMAX box motion controller.
Watch Now →

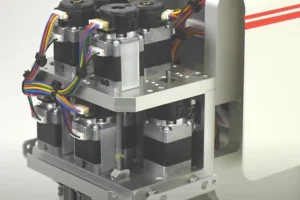

Linear hybrid stepper in a pipetting/dispensing application

Nippon Pulse linear hybrid steppers in a compact 8-head dispensing demo; controlled by Nippon Pulse Commander core motion controller in a custom PCB.
Watch Now →

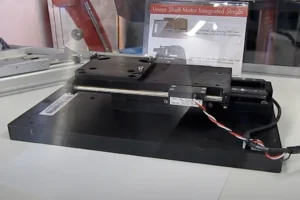

Linear Servo Motor Integrated, Custom Stage System

In the image and video, note that to the left you can partially see Nippon Pulse’s SLP stage system. This system is also designed around the Linear Servo Motor, but has the bearings and encoder already built into the housing frame. This all-inclusive stage system is an ideal replacement for ball-screws, rack & pinion, and…
