NIPPON PULSE 3D CAD MODELS

Nippon Pulse now offers 3D CAD models and downloads for its rotary stepper and linear servo motors, as well as our linear stage options. You can download 2D drawings and 3D models for 40 of our product families in virtually every CAD format available. While you create a model to plug into your project, the modeler creates the corresponding part number, simplifying the ordering process. You can find the download link in the top navigation bar of every page on the Nippon Pulse website.

Rotary Motion Motors

Hybrid Stepper
  • High torque with superior response
  • Available in several NEMA sizes (8, 11, 17, 23)
  • Step angles of 0.9 or 1.8 degrees
Tin-Can Stepper
  • High performance, cost effective
  • Change speed depending on the frequency of the pulse signal
  • Manufactured by Nippon Pulse since 1952

Linear Motion Motors

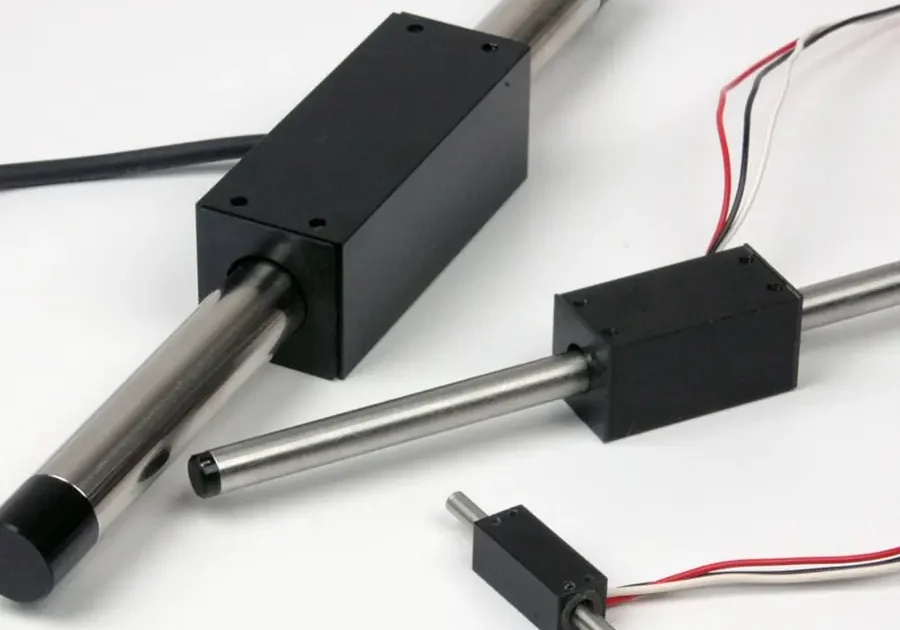

Linear Servomotors
  • Simple - Magnetic shaft and forcer
  • High Precision - Ironless design results in zero cogging
  • Non-Contact - Non-critical air gap means no variation in force
Linear Stepper
  • Simple, low-cost direct drive linear actuator
  • Offered in diameters of 25mm and 35mm
  • Three thread pitches on lead screw (0.48mm, 0.96mm, and 1.2mm)
