SCR075-050 Nanopositioning Linear Stages
Ultra Precision Linear Stages

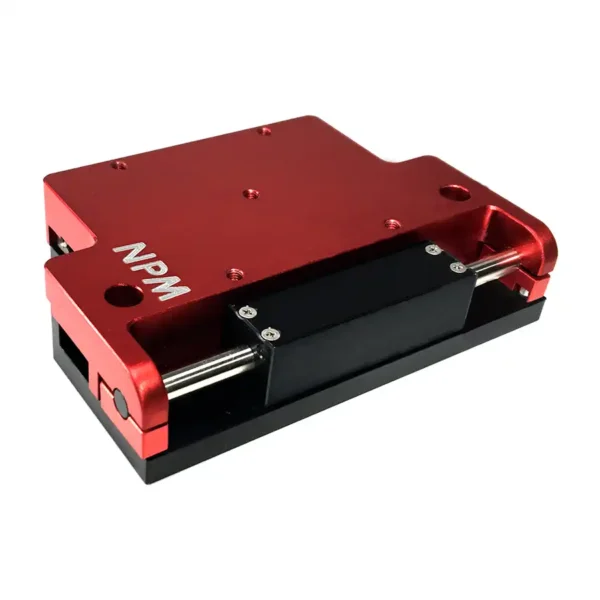

The Nippon Pulse SCR series stages produce extremely accurate results with no loss in stability, regardless of the complexity of the motion profile. Using our linear shaft motor technology, these stages provide high force and speed capability in a small, low-profile package. The SCR075 series utilizes cross roller bearings and includes an 8mm linear shaft motor and available encoder resolutions as low as 0.01 microns. Standard stroke lengths of 50mm, 100mm and 150mm are available.
“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer
Specification Overview
-
Continuous Force (N)3.5
-
Length (mm)98
-
Height (mm)32
-
Travel/Stroke (mm)50
-
Acceleration Force (N)14
-
Total Mass (kg)1
-
Moving Mass (kg)1
-
Maximum Velocity (m/s)1.1
-
Maximun Acceleration (m/s2)25
-
Accuracy (µm)3
-
Load Capacity (kg)45.5
-
Straightness (µm)2.5
-
Flatness (µm)25
-
Bearing TypeCross-roller
-
Linear Shaft MotorS080Q
