PCL6145 Chip Level Controller

High Performance Programmable Pulse Generator Chip Technology

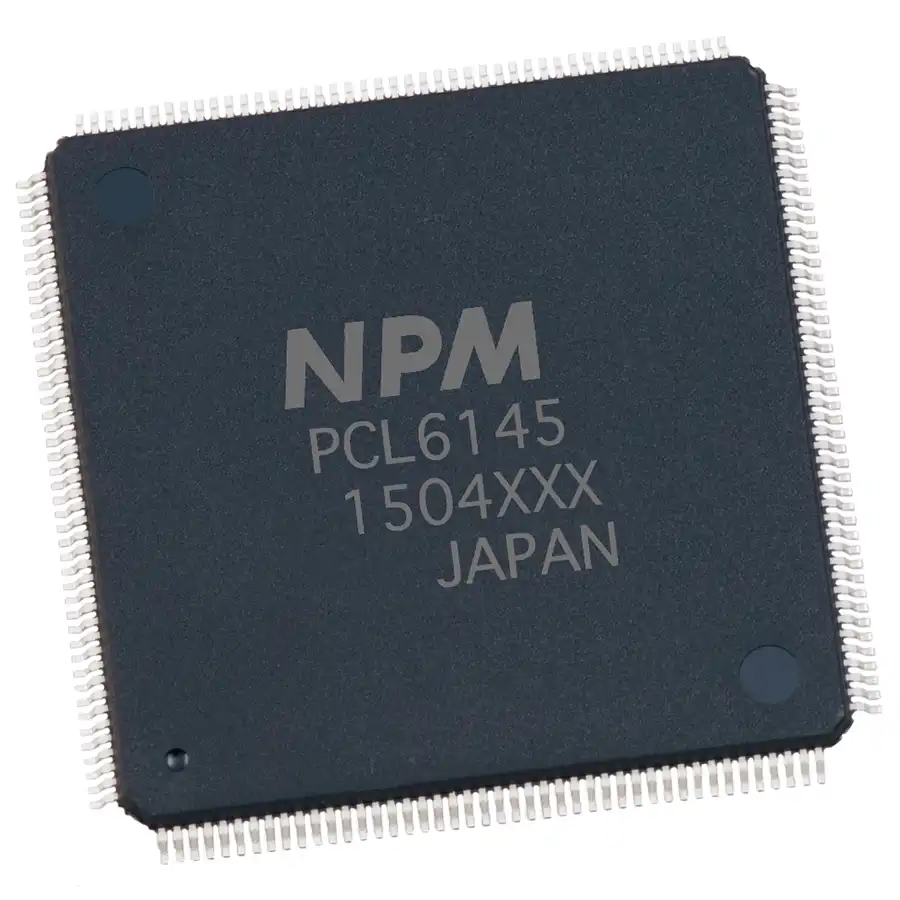

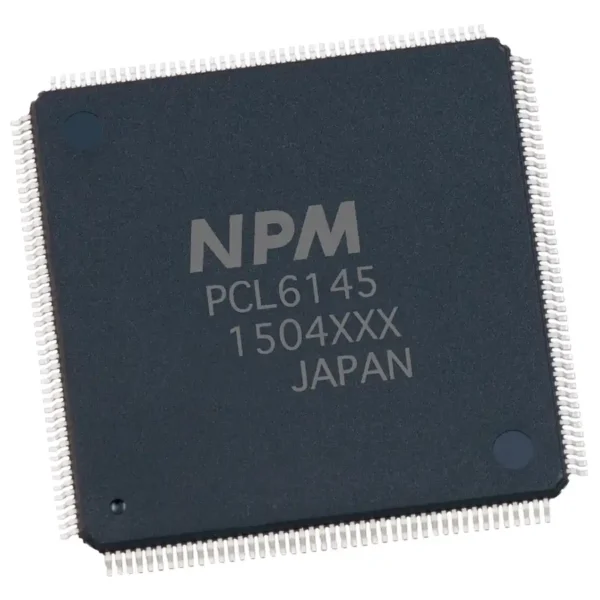

The Nippon Pulse PCL6100 series programmable pulse control chips provide high-speed pulses for stepper or servomotor control while reducing the burden on the CPU for single or multi-axis systems. This pulse generator ASIC is designed to contend with almost every challenge that could arise in complex motion systems. The PCL6145 is a 4-axis chip packaged in a compact 176-pin QFP.

“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer

Specification Overview

  • RoHS
    Yes
  • Axis Count
    4
  • Maximum Output Frequency (pps)
    9.8M
  • Package Type
    176-pin QFP
  • Interpolation Option
    Linear, Continuous
  • Power Supply Voltage
    3.3 Vdc +/-10%
  • Encoder Input
    A, B, and Index per axis
  • CPU Interface
    8/16 bit Bus or SPI
  • Chip Design
    CMOS
  • Speed Multiplicaion Rate
    0.3x to 600x
  • Acceleration Rate
    1 to 65535 (16 bit)
  • Deceleration Rate
    1 to 65535 (16 bit)
  • Position Pulse Range
    -2,147,483,648 to +2,147,483,647 (32 bit)
  • Ramp Down Range
    0 - 16,777,215 pulses
  • Mold Section Size
    24.0 x 24.0 mm
